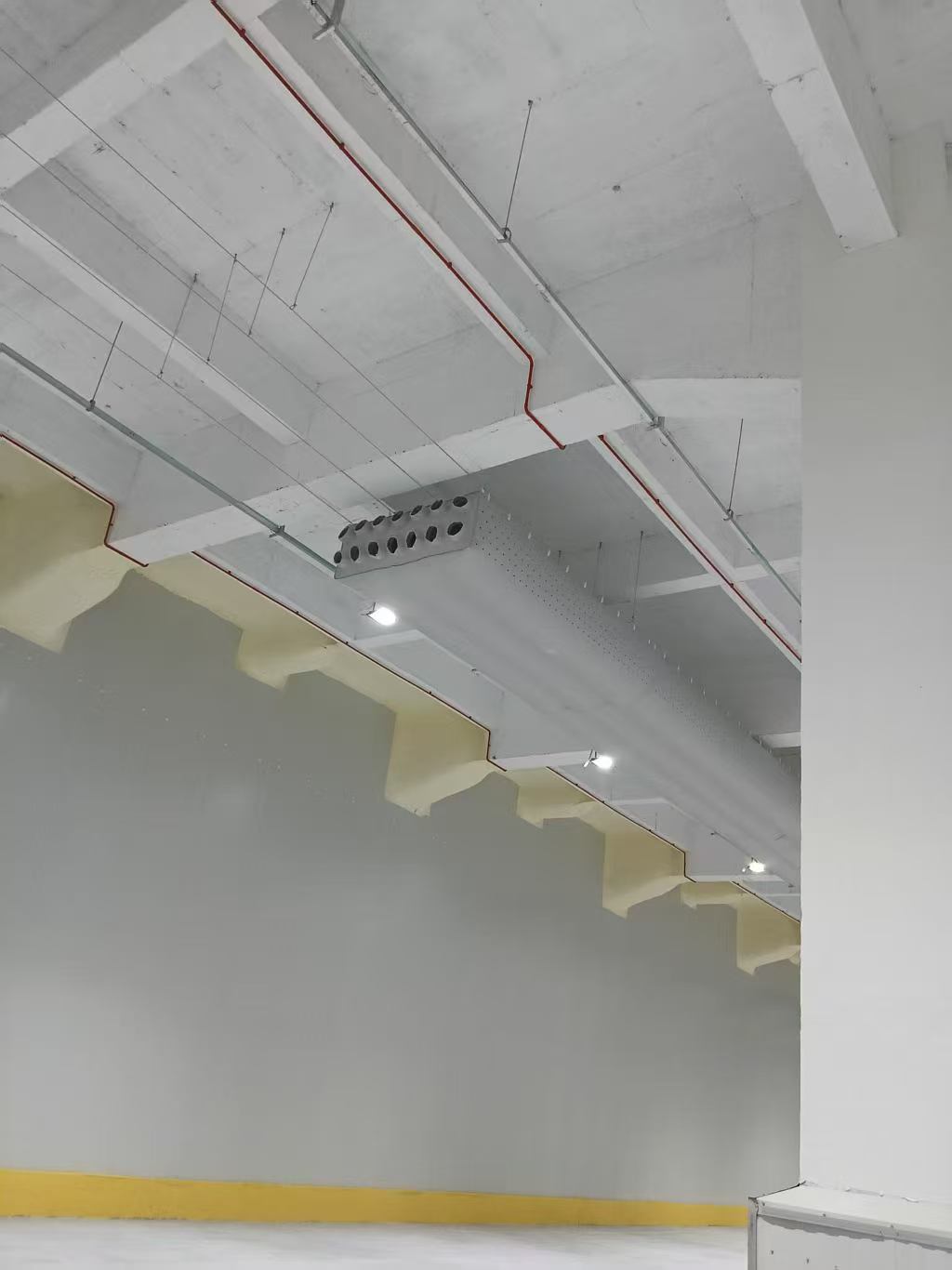

The MX-D series fabric air duct is a fiber fabric air duct suitable for both cold and warm working conditions. It solves the problem of hot air seeping out during the transportation of warm air using permeable material fabric air ducts, which may suspend in the upper part of the transported space and cause heat loss, as well as the problem of wind angle design during the transportation of cold and hot air.
| model | D-0 | D-1 | D-2 | D-3 |
| Air outlet method | Fabric penetration | Mesh scattering | Orifice outlet air | efflux nozzle |
| thickness（mm） | 0.25-0.51 | 0.25-0.51 | 0.25-0.51 | 0.25-0.51 |
| weight（g/㎡） | 270-315 | 270-330 | 270-330 | 270-360 |
| shrinkage | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| Fire certification | B | B | B | B |
| corrosion resistance | have | have | have | have |
| Anti condensation property | have | have | have | have |
| shape | 5 shapes to choose from | 5 shapes to choose from | 5 shapes to choose from | 5 shapes to choose from |
| colour | Color card optional | Color card optional | Color card optional | Color card optional |
Performance of D series fabric materials:
1. Flame retardancy: B1 level (s1, d0, t0) fire-resistant, permanently flame-retardant, non melting and non dripping, with smoke toxicity reaching ZA1 level;
2. Breathability: Permeable material; It has 30 standard air permeability rates (1-40mm/s; 125Pa). Meet the needs of different places for use
3. Water resistant: can be thoroughly cleaned more than 50 times without any flocculent fabric precipitates
4. Antibacterial and antifungal treatment: After antibacterial and antifungal treatment, ≥ 95%
5. Anti condensation: patented design, fabric air guide, minimal loss of cold and hot loads, no condensation.
6. Conventional weight: 210gsm-260gsm
7. Execution standards: EN ISO 11611、EN ISO 11612、IEC61482-1-2、GB/T5453-1997、GB8624-2012

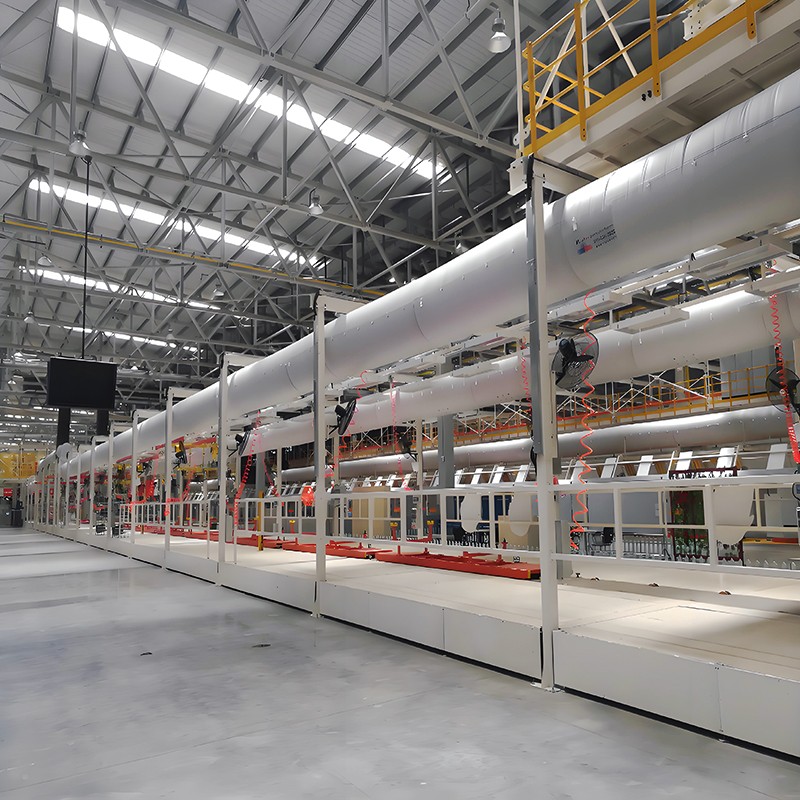

8. Application: Low pressure refrigeration, air conditioning and ventilation systems, and heating systems
9. Public areas: sports venues, exhibitions, auditoriums, etc
10. Business areas: supermarkets, commercial centers, cinemas
